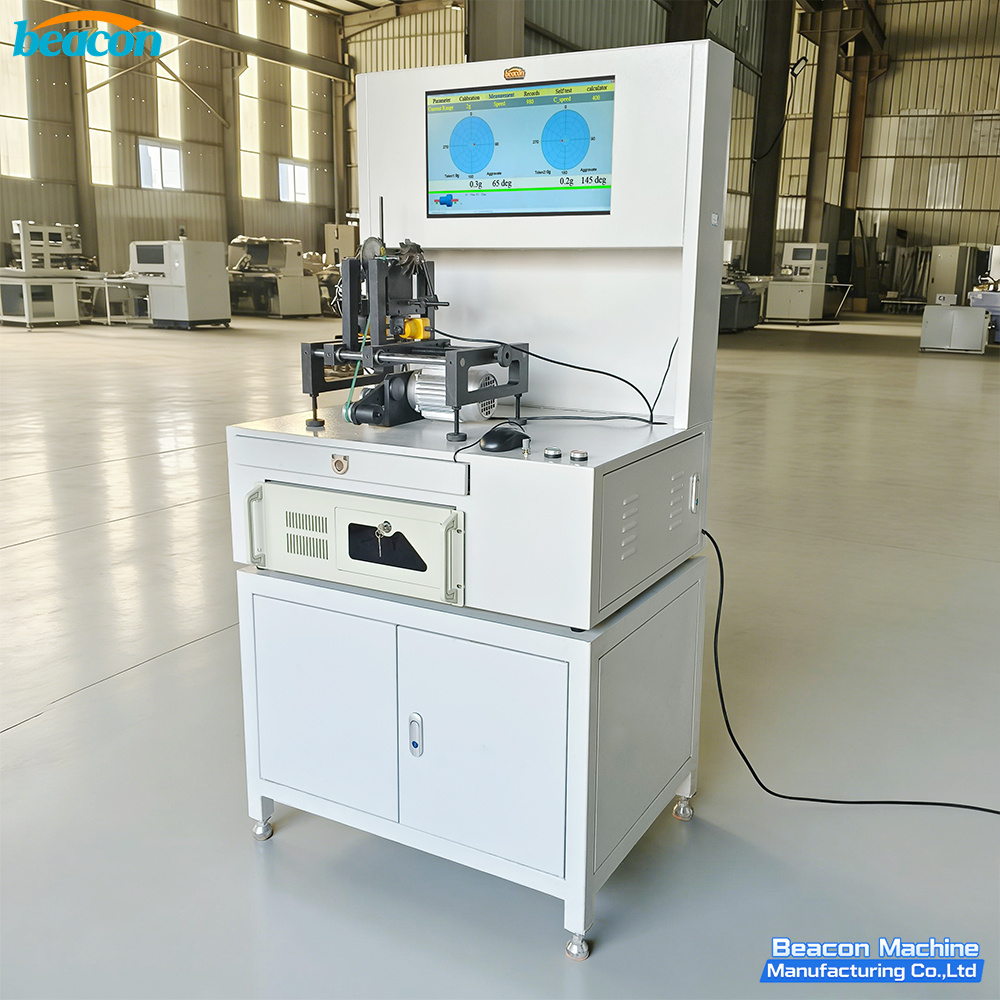

RYQ-3A Turbocharger Dynamic Balancing Machine | High-Precision Belt Drive Balancer

Professional RYQ-3A turbocharger balancing machine for small rotors (0.01-3kg). Featuring a soft-bearing system, belt drive, and infinitely variable DC drive for high precision. Ideal for turbocharger repair and mechanical part balancing. Easy to operate with a computer-based measuring system and ergonomic design for maximum efficiency.

Get in touch

Details

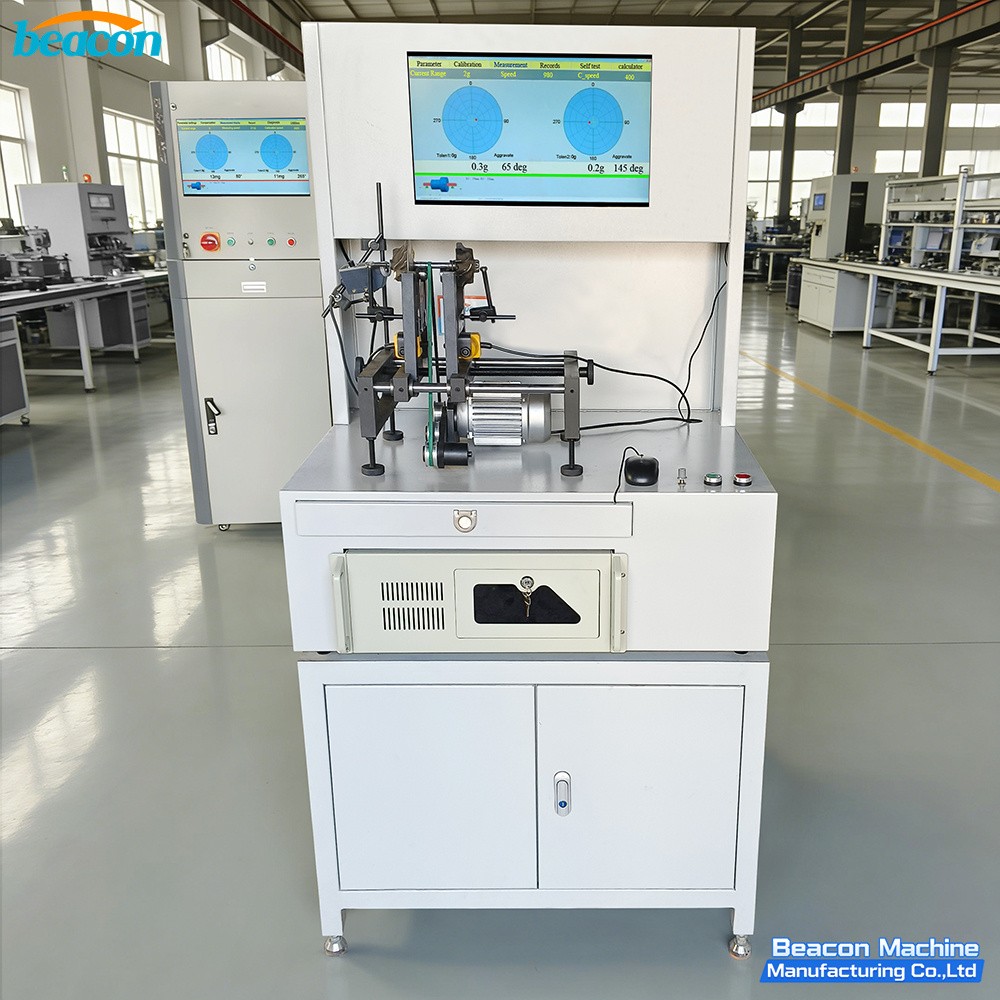

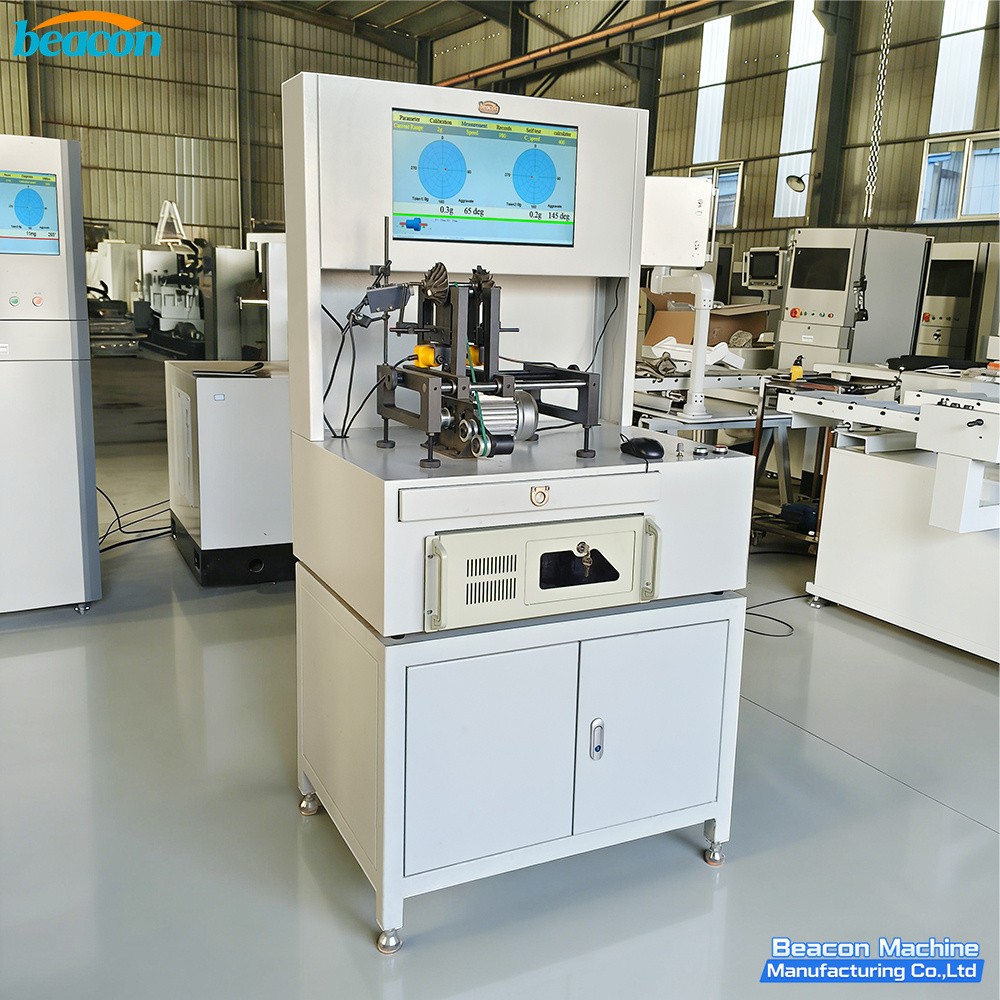

The RYQ-3A is a professional-grade horizontal soft-bearing balancing machine specifically designed for turbochargers and small mechanical rotors. This belt-driven system supports workpieces ranging from 0.01kg to 3kg, ensuring versatility for various high-speed components. Equipped with advanced measuring software and a computer display, it provides real-time data for accurate unbalance reduction.

RYQ-3A Turbocharger Dynamic Balancing Machine | High-Precision Belt Drive Balancer Advantage

High Precision & Efficiency: Achieves a minimum residual unbalance of $$le 0.5 g.mm/kg$$ with an unbalance reduction ratio of $$ge 90%$$ .
User-Friendly Design: Ergonomic working height and simple handling make it accessible for any technician.
Flexible Operation: Features an infinitely variable DC drive and can be conveniently placed on a workbench or table.

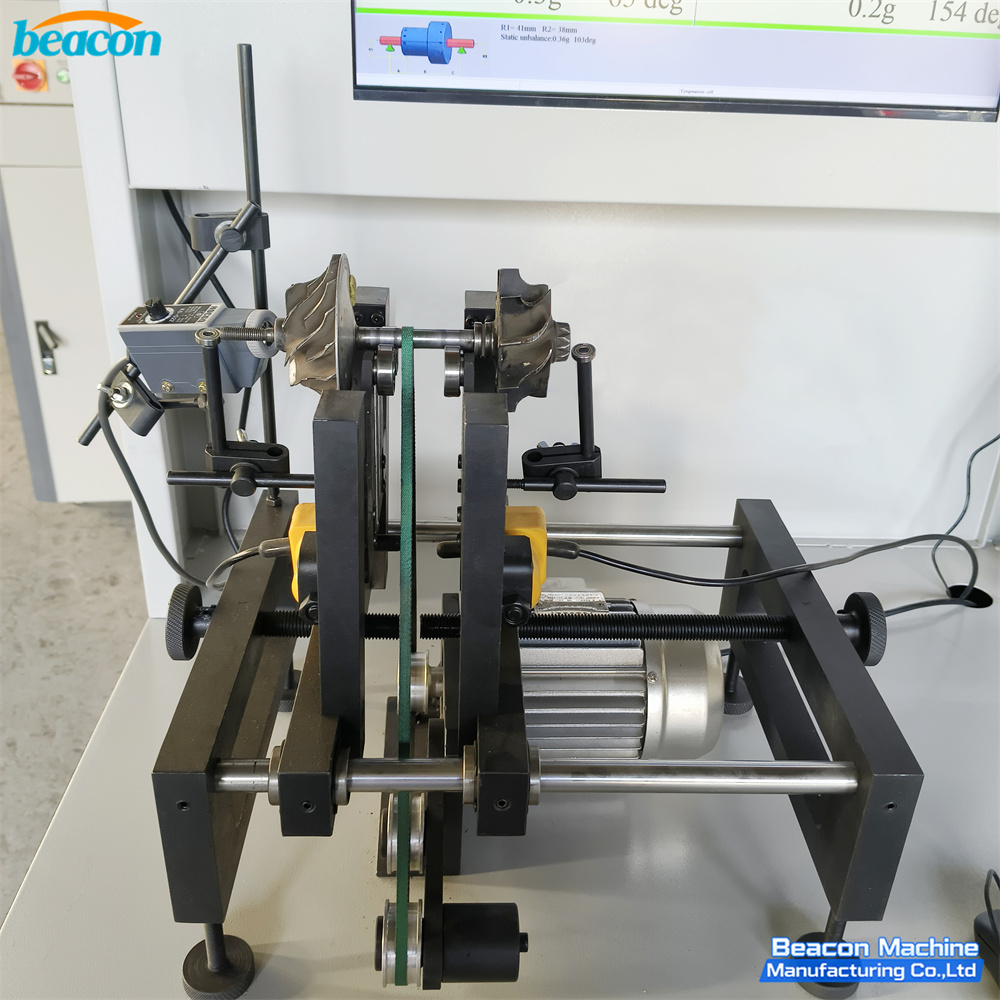

Reliable Technology: Utilizes a stable soft-bearing system and belt drive to ensure consistent measurement accuracy.

parameter

Item	Specification
Model	RYQ-3A
Mass of Workpiece	0.01-3 kg
Max. Diameter of Workpiece	Φ350 mm
Distance Between Support Bearings	30-450 mm
Range of Journal Diameter	φ3-22 mm
Balancing Speed	400-10000 r/min
Min. Achievable Residual Unbalance	≤ 0.5 g.mm/kg
Unbalance Reduction Ratio	≥ 90%
Drive Power	0.09 kw
